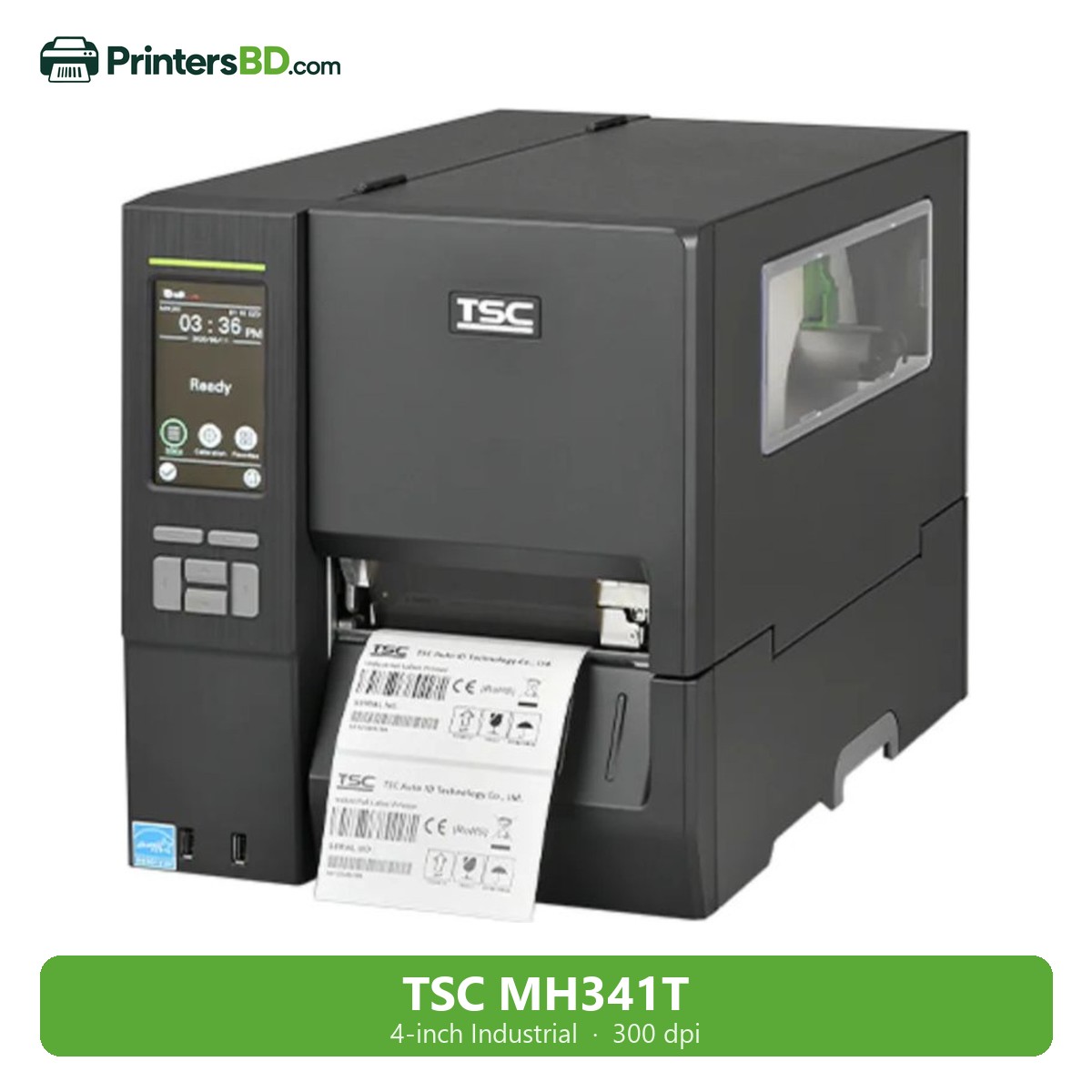

TSC MH341T Industrial Barcode Label Printer (4-inch, 300 dpi)

In stockCode PBD-IND-MH341TTSC

Ask for price

  • Delivery in 1–3 days all over BangladeshDelivery charge is calculated by weight and added after we confirm your order.
  • Cash on delivery · or buy at our Mirpur officePrinters: pay only the delivery charge (৳300–500) first by bKash.
  • Checked before dispatch
  • 1-year warranty
  • Free setup help

Quick overview

Printer class
Industrial
Printing method
Thermal transfer and direct thermal
Resolution
300 dpi (12 dots/mm)
Print speed
305 mm/s (12 ips)
Print width
104 mm (4.09 in)
Interface
RS-232, USB 2.0, internal Ethernet 10/100, 2× USB host
Memory
256 MB SDRAM
Display
4.3" colour resistive touch screen (480 × 272), 6 operation buttons, status LED

Key features

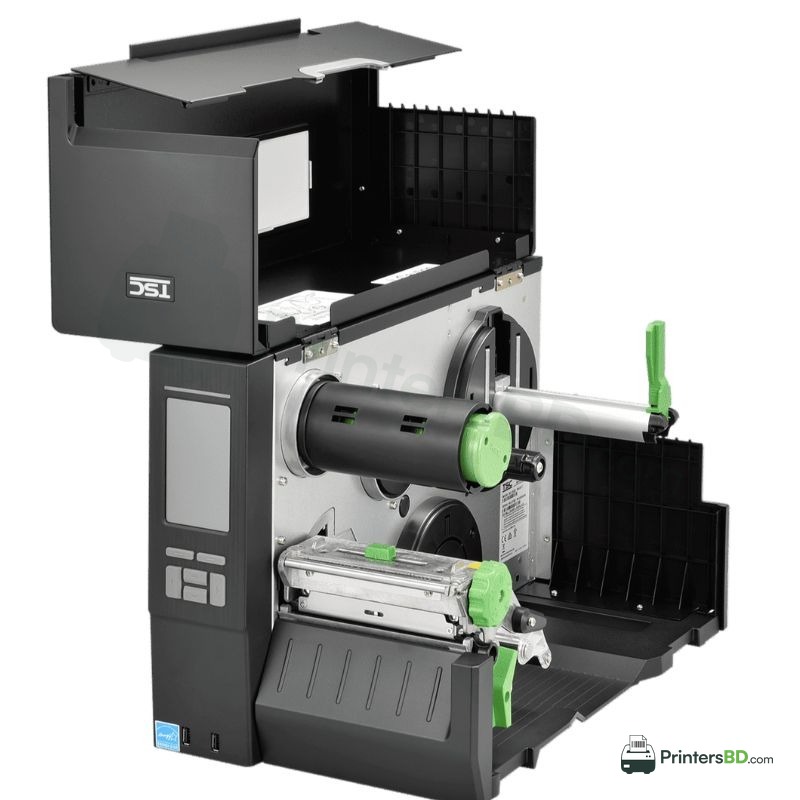

  • Die-cast mechanism with metal bi-fold cover
  • 600 m ribbons and 8-inch label rolls — fewer changes
  • Emulates EPL, ZPL, ZPL II and DPL
  • Optional cutter, peeler and rewinder
View full specifications
Specification

General

BrandTSC
ModelMH341T
Printer classIndustrial
TypeBarcode label printer
Display4.3" colour resistive touch screen (480 × 272), 6 operation buttons, status LED
Frame / housingDie-cast print mechanism and base, bi-fold metal cover with large clear media window

Print

Printing methodThermal transfer and direct thermal
Resolution300 dpi (12 dots/mm)
Max print speed305 mm/s (12 ips)
Max print width104 mm (4.09 in)
Max print length11,430 mm (450 in)

Media

Media typesContinuous, die-cut, black mark (top or bottom), fan-fold, notch, perforated, tag, care label (outside wound)
Max media width114 mm (4.5 in); min. 20 mm
Max roll diameter (OD)203.2 mm (8 in)
Core size38.1 mm / 76.2 mm (1.5" / 3")
Media thickness0.06 – 0.28 mm

Ribbon

Ribbon length600 m (max. OD 90 mm)
Ribbon width25.4 – 114.3 mm (1 – 4.5 in)
Ribbon core1 inch (25.4 mm)
Ribbon woundInk side out or ink side in

Memory

RAM256 MB SDRAM
Flash storage512 MB Flash; microSD card reader (up to 32 GB)

Connectivity

Interface (built-in)RS-232, USB 2.0, internal Ethernet 10/100, 2× USB host
Optional interfacesGPIO + parallel (factory option); internal Bluetooth 5.0 MFi (factory option); Wi-Fi 802.11 a/b/g/n/ac + Bluetooth 4.2 combo module (dealer option)

Software

Printer languagesTSPL-EZD (compatible with EPL, ZPL, ZPL II, DPL)
Barcodes supportedMajor 1D codes (Code 39/93/128, EAN/UPC, GS1 DataBar, ITF, MSI and more); 2D: PDF417, MaxiCode, DataMatrix, QR Code, Aztec

Options

CutterOptional: regular, heavy-duty or care-label guillotine cutter
PeelerOptional peel-off kit
RewinderOptional internal rewinder kit (5" OD)

Power

Power supplyInternal switching PSU, AC 100–240 V, 50–60 Hz

Physical

Dimensions (W × H × D)276 × 326 × 502 mm
Weight15.7 kg
Operating temperature0 – 40 °C, 25–85% RH non-condensing

Warranty

Warranty1 year
Description

The TSC MH341T is a 4-inch industrial label printer built for sites that print labels all day, every day. It prints at 300 dpi, so small text, 2D codes and logos stay sharp, and the colour touch screen makes it easy for floor staff to run jobs without a PC expert.

Key features

  • Fine 300 dpi print: Crisp results on small care labels, pharma labels and dense QR or DataMatrix codes.
  • Fast output: Up to 12 inches per second keeps pace with busy packing and dispatch lines.
  • Touch screen control: A 4.3-inch colour touch display lets operators change settings and spot errors quickly.
  • Tough metal build: The die-cast mechanism and metal cover are made for dusty, hot factory floors.
  • Long run times: An 8-inch label roll and 600 m ribbon mean fewer stops for reloading.
  • Easy migration: It understands EPL, ZPL and DPL, so existing label formats from other brands usually work.

Where it fits

This model suits garment and RMG factories printing care labels, size labels and carton labels, pharmaceutical plants that need small, readable batch and expiry text, and warehouses or 3PL operations printing shelf, bin and pallet labels. It also works well on manufacturing lines and at FMCG distribution hubs where labels are printed in large batches every shift.

Direct thermal or thermal transfer?

The MH341T can do both. Use direct thermal labels without a ribbon for short-life shipping labels. For care labels, product labels and anything that must survive heat, sunlight, rubbing or chemicals, use thermal transfer with a wax, wax-resin or resin ribbon matched to your label material.

Buying in Bangladesh

Price is on request. Message PrintersBD on WhatsApp or give us a call for today’s price and delivery time. We can also supply ribbons and labels in matching sizes, and our team can help with driver installation, label design software and first-time setup.

Ribbons and labels for the TSC MH341T

For thermal transfer printing use 110 mm wax, 110 mm wax-resin or narrower ribbons (42–85 mm) for small labels, wound ink side out. Wax suits paper labels; wax-resin suits coated paper and synthetic labels that must resist rubbing. For direct thermal printing, 4-inch shipping labels need no ribbon. See all barcode ribbons.

বাংলায়

TSC MH341T ইন্ডাস্ট্রিয়াল বারকোড লেবেল প্রিন্টার, গার্মেন্টস ফ্যাক্টরি, গোডাউন আর প্রোডাকশন লাইনের জন্য। দাম ডলারের রেট আর কনফিগারেশনের উপর নির্ভর করে, তাই আজকের দাম জানতে কল বা হোয়াটসঅ্যাপ করুন। রিবন, লেবেল আর সেটআপের সাহায্যও আমরা দিই।

Reviews (0)
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “TSC MH341T Industrial Barcode Label Printer (4-inch, 300 dpi)”

Your email address will not be published. Required fields are marked *

Questions (0)

No questions yet — be the first to ask.

Ask a question about this product

FAQ
What is the price of TSC MH341T Industrial Barcode Label Printer (4-inch, 300 dpi) in Bangladesh?

Prices of TSC MH341T Industrial Barcode Label Printer (4-inch, 300 dpi) change with stock and quantity. Message us on WhatsApp or call and we will tell you today's best price within minutes.

Which paper does TSC MH341T Industrial Barcode Label Printer (4-inch, 300 dpi) use?

It uses 4-inch shipping & barcode labels and Ribbons up to 110 mm (4-inch printers). We supply matching rolls and labels, so you can order them together.

Does TSC MH341T Industrial Barcode Label Printer (4-inch, 300 dpi) need ink, toner or ribbon?

No. It is a direct thermal printer — it prints with heat on thermal paper, so you never buy ink, toner or ribbons.

What warranty do I get?

TSC MH341T Industrial Barcode Label Printer (4-inch, 300 dpi) comes with 1 year warranty. We also help you set it up with your POS software or phone.

Do you deliver outside Dhaka?

Yes, we deliver all over Bangladesh with cash on delivery. Inside Dhaka it usually arrives in 1–2 days, outside Dhaka in 2–4 days.

Shipping & delivery

Inside Dhaka: delivered within 24–48 hours.

Outside Dhaka: 2–4 days by courier, cash on delivery available.

Every printer is checked before it is packed.
